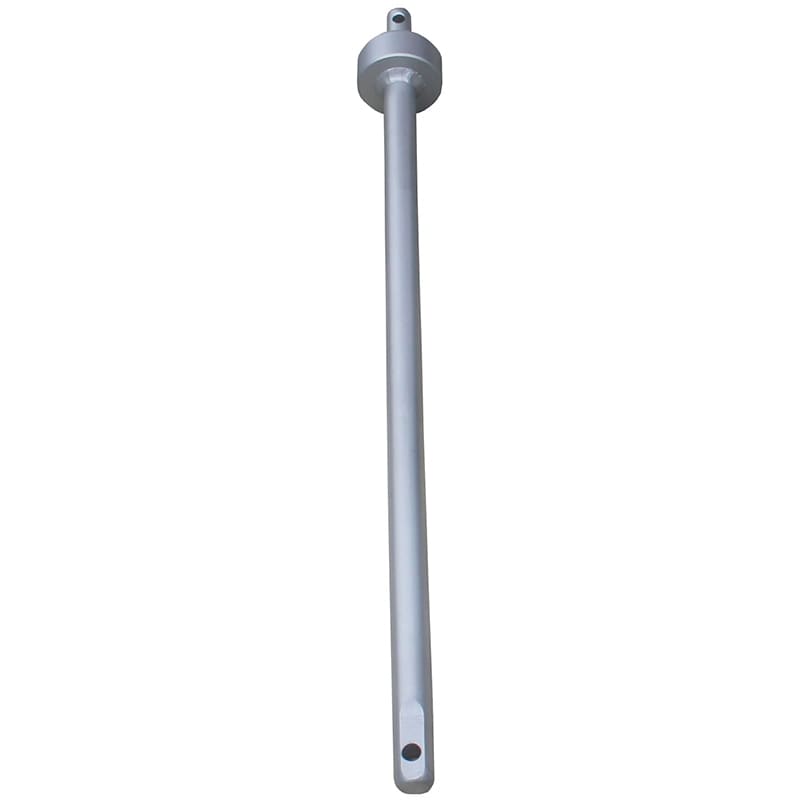

We manufacture Bulwagga anchors in the best quality to make you feel safe in any type of unpredictable conditions. Anchors are available in 5 sizes.
Our anchors are made of:

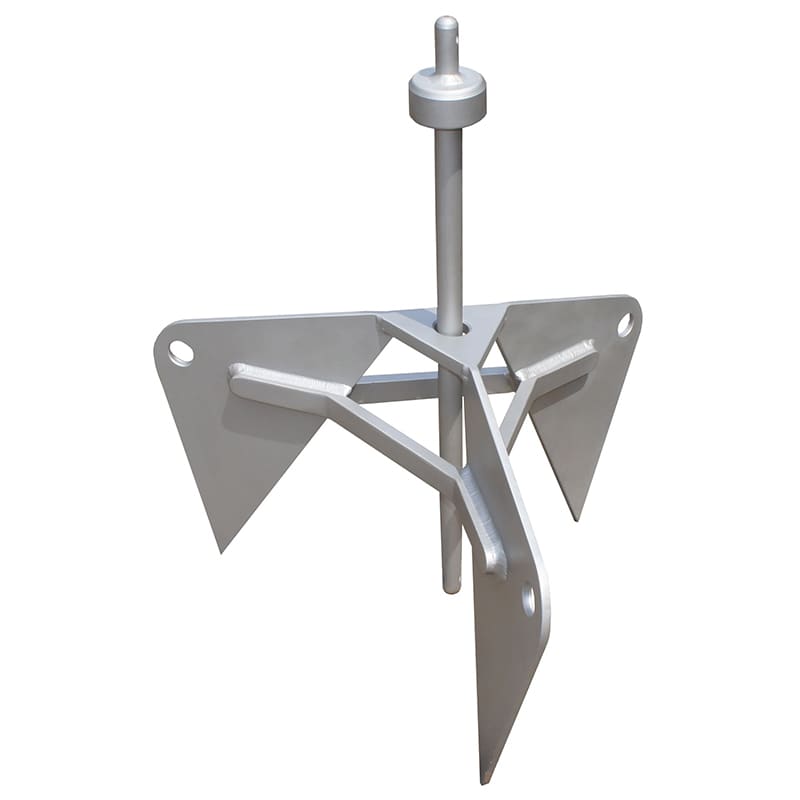

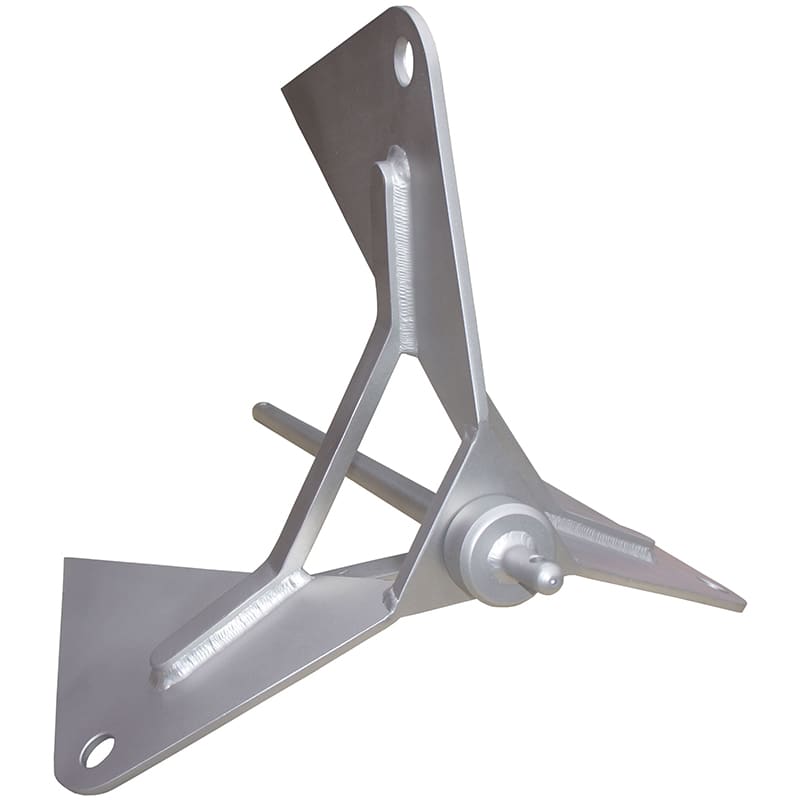

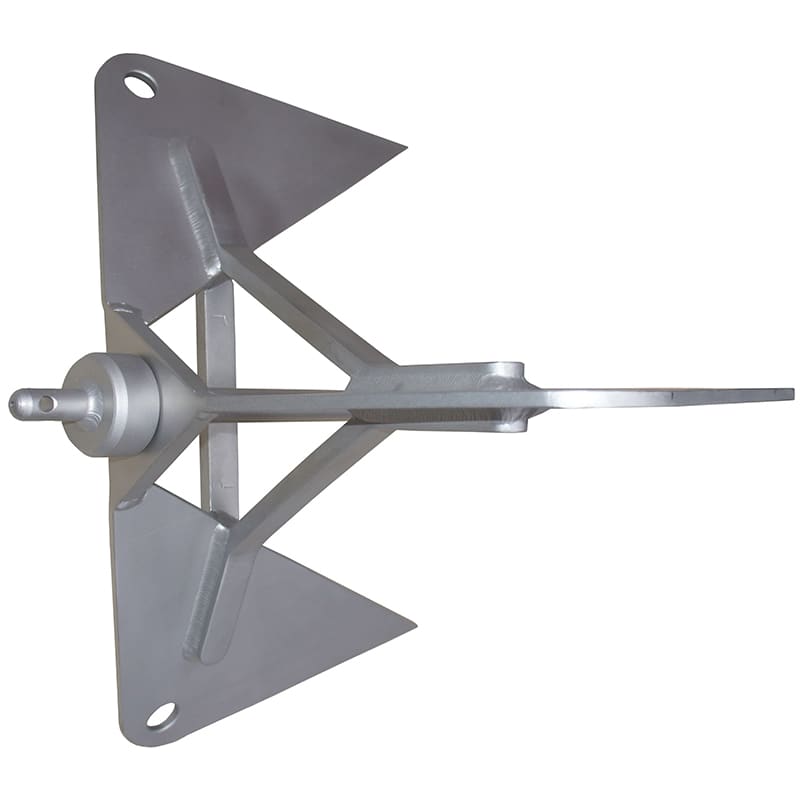

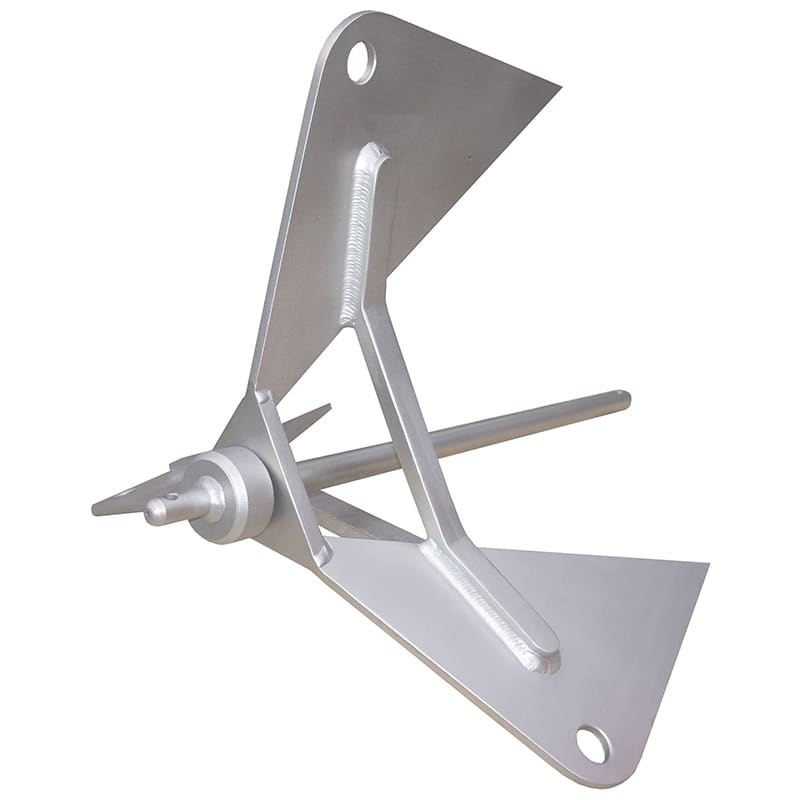

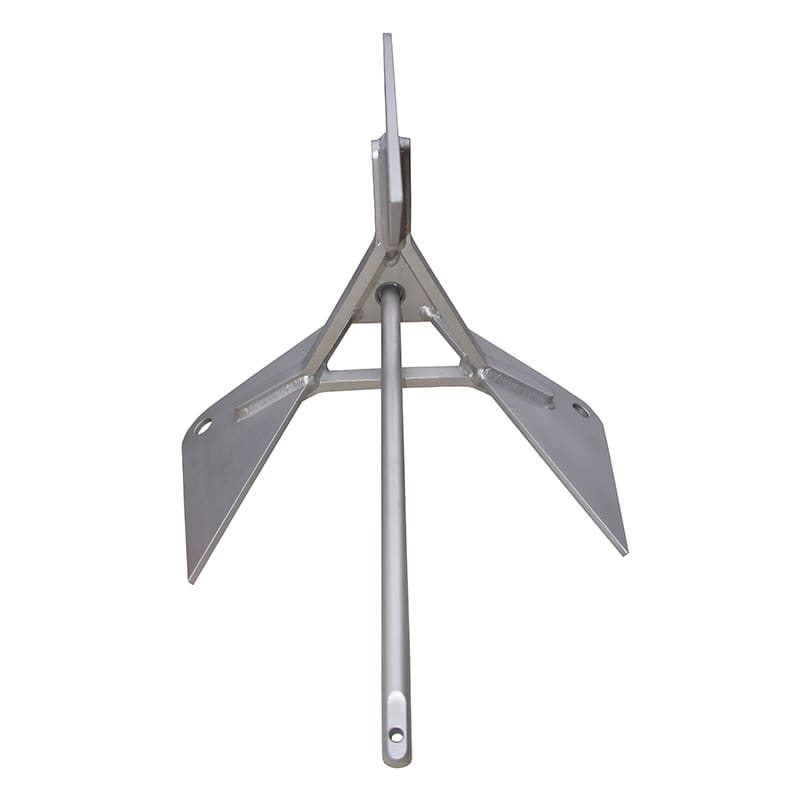

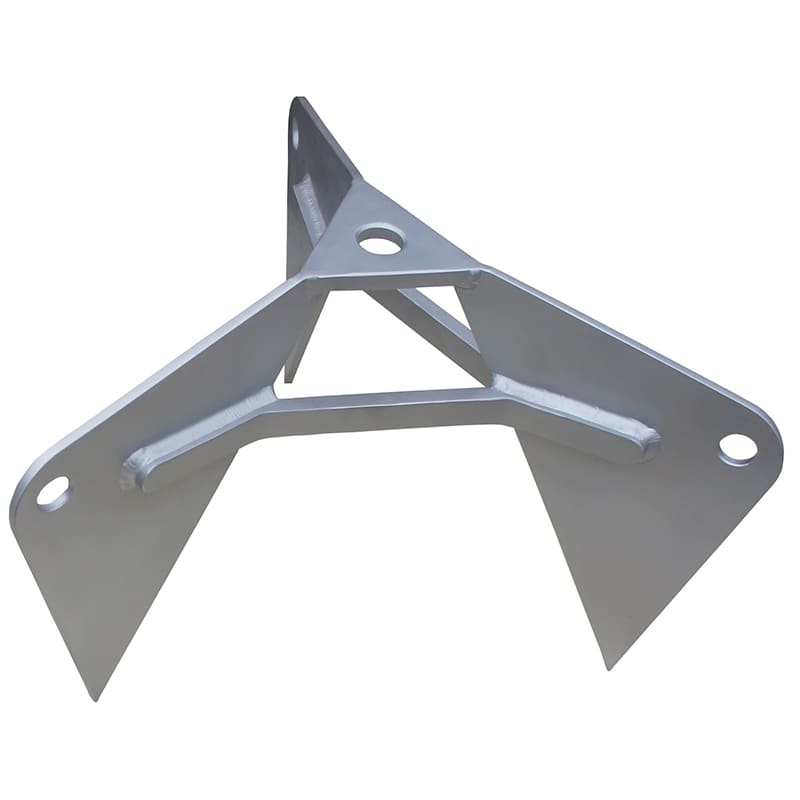

- 316L quality stainless steel.

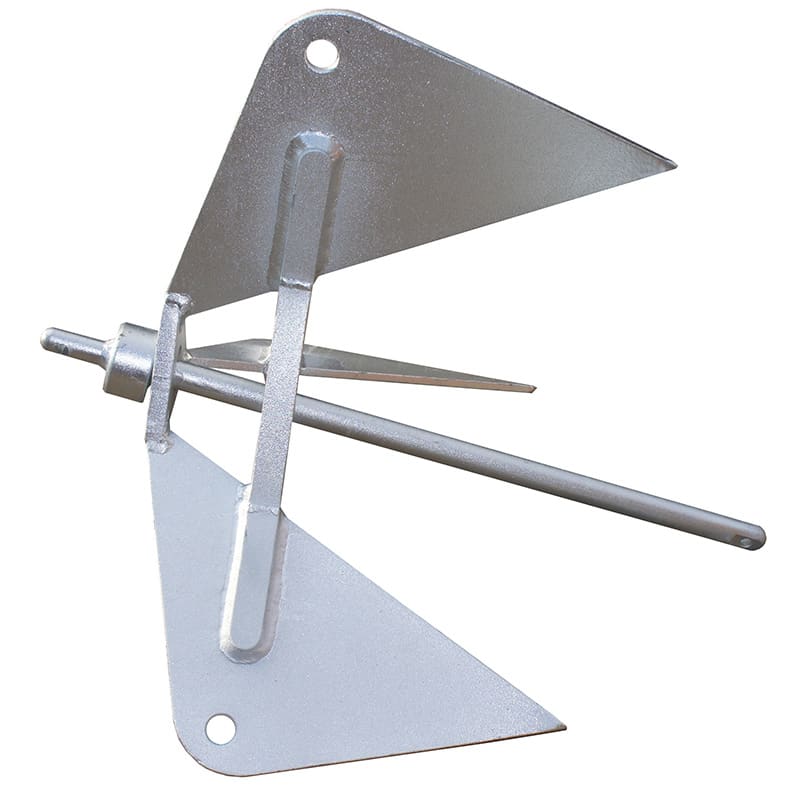

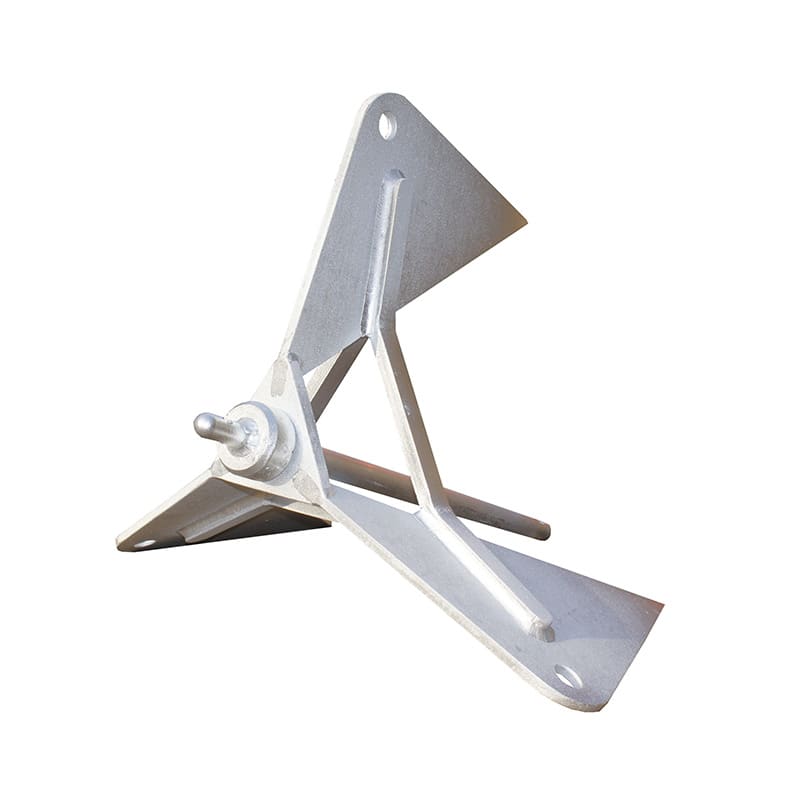

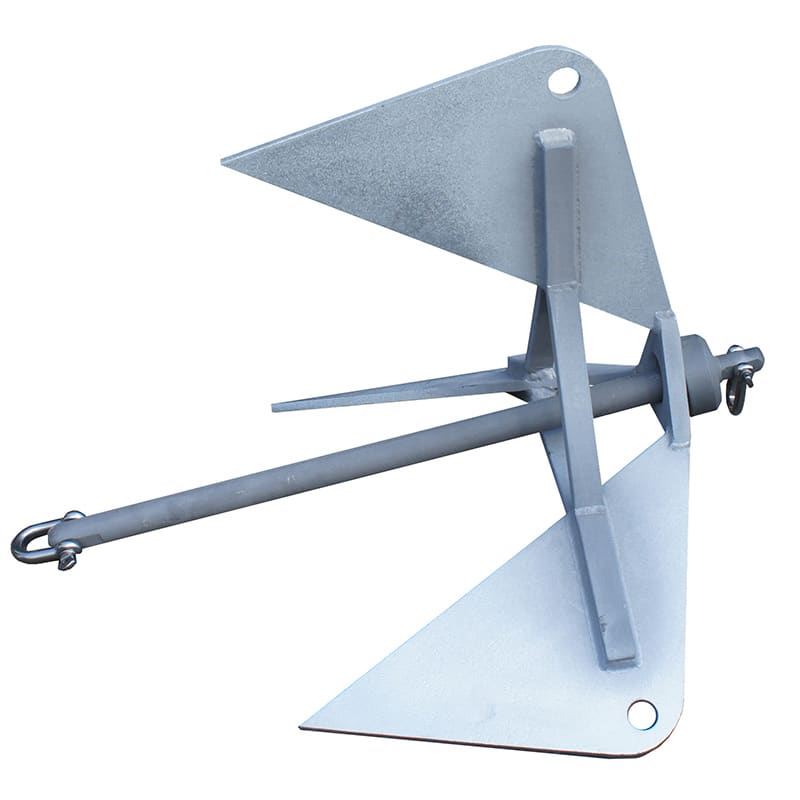

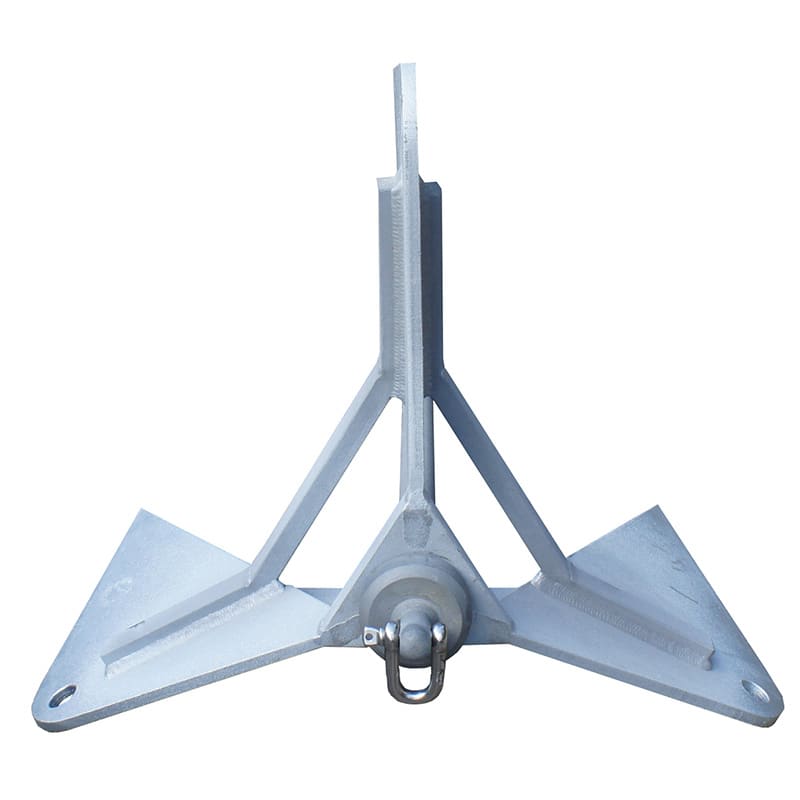

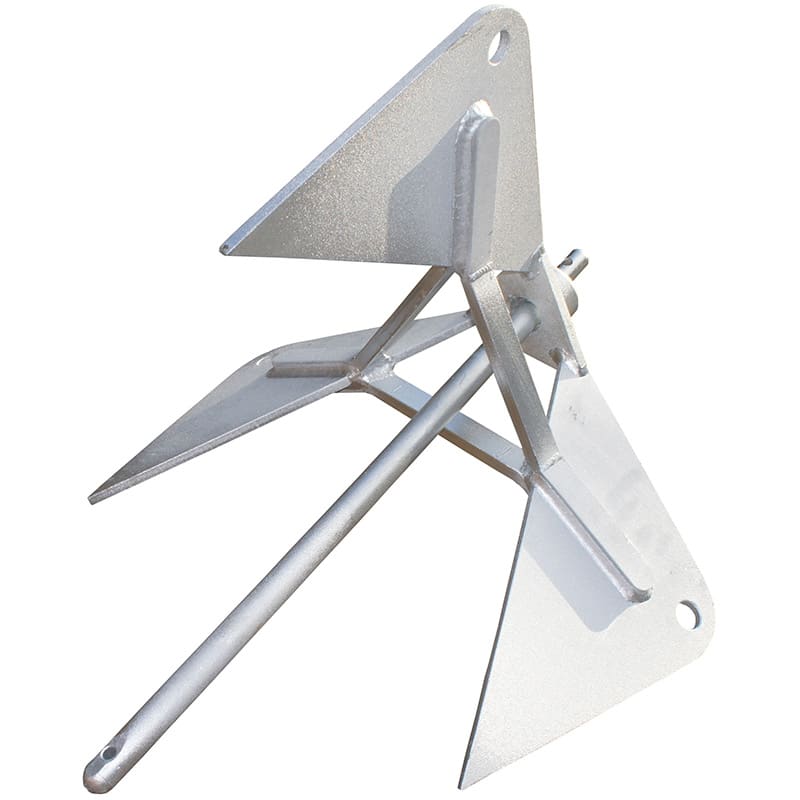

- Carbon steel which is hot dip galvanized after product is finished.
If you would like your anchor to be made of any other steel grade such as duplex stainless steel
or 316Ti stainless steel or for any special production please contact our factory at
contact@bulwaggaanchor.com or through our contact form.

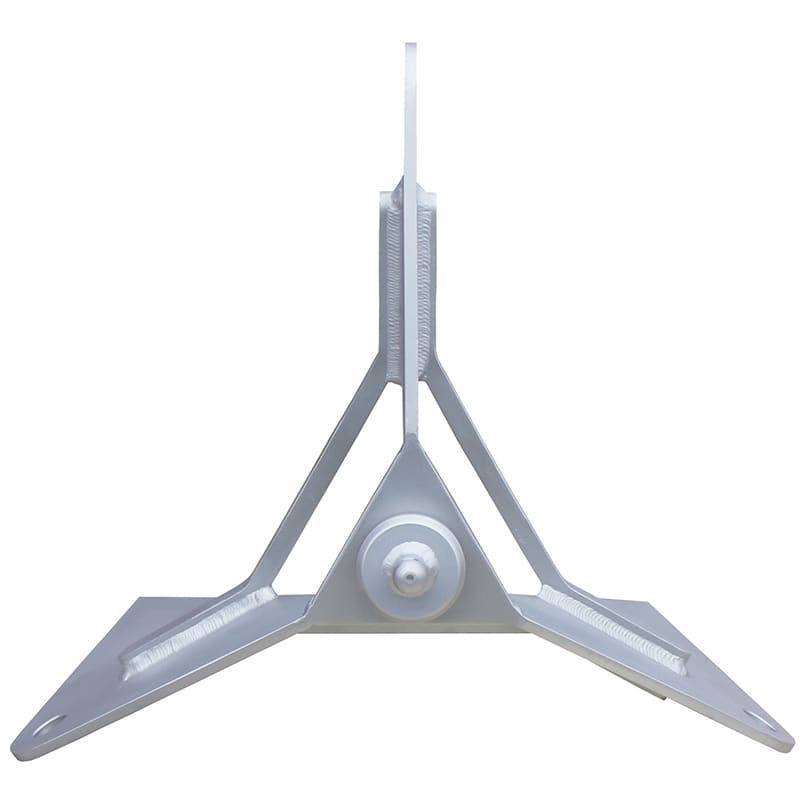

Every part of anchor is processed by high qualified employees. Anchor is welded with pure Argon
gas by certified welder (manual welding). More detailed about product, it's manufacturing steps you
can find in our catalogues.

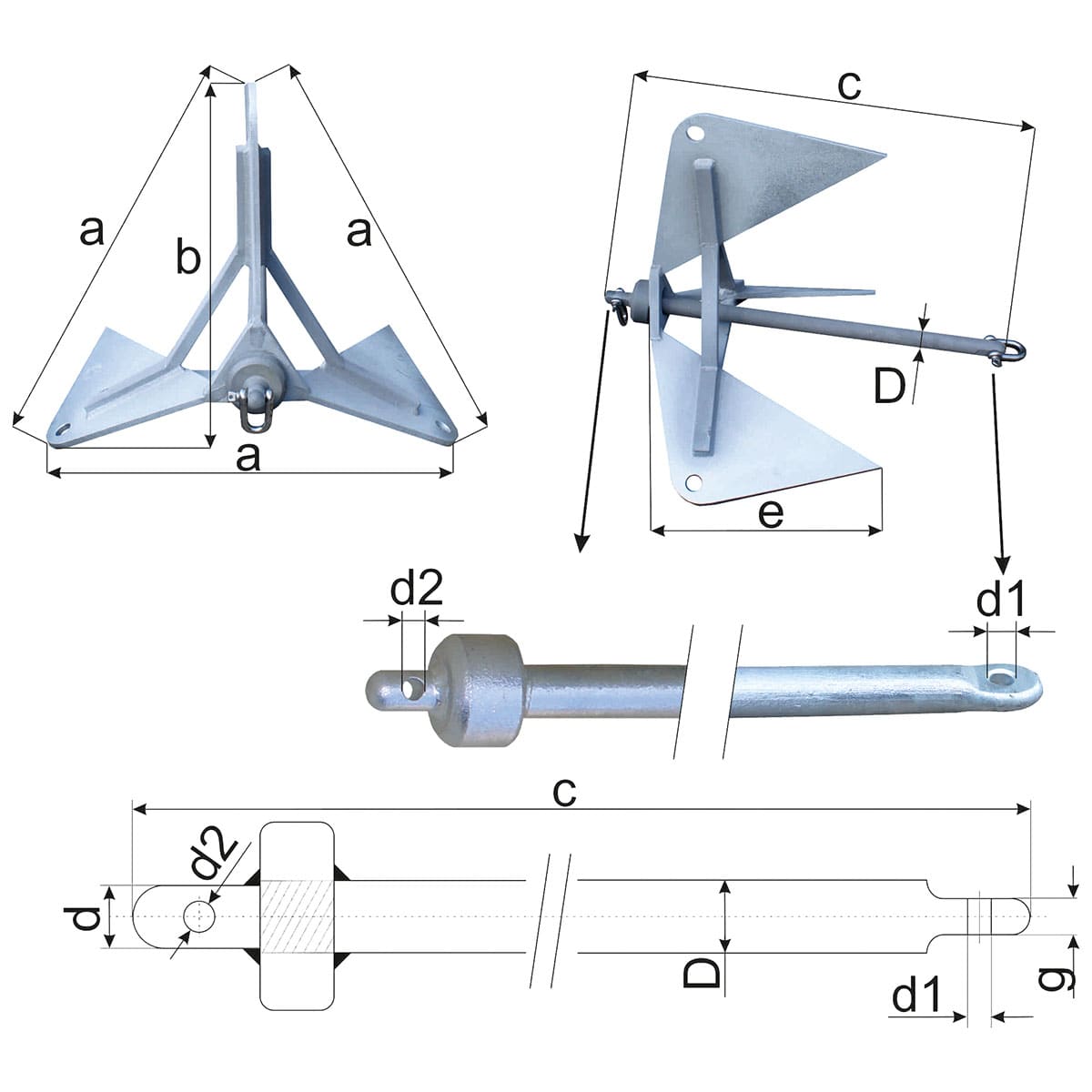

| Anchor Size | a, inch |
b, inch |
c, inch |
D, inch |
d1, inch |
d2, inch |
e, inch |
d, inch |
g, inch |
| Size 1 - 14.2 lbs | 15.4 | 13.4 | 18.1 | 0.63 | 0.394 | 0.275 | 10.2 | 0.43 | 0.394 |
| Size 2 - 22.6 lbs | 18.5 | 16.1 | 21.9 | 0.87 | 0.453 | 0.354 | 12.2 | 0.59 | 0.433 |
| Size 3 - 34.7 lbs | 21.7 | 18.9 | 25.4 | 0.945 | 0.453 | 0.433 | 14.2 | 0.75 | 0.433 |
| Size 4 - 51.1 lbs | 24.4 | 21.3 | 28.74 | 1.1 | 0.531 | 0.531 | 16.1 | 0.87 | 0.57 |
| Size 5 - 84.2 lbs | 28 | 24.4 | 32.7 | 1.38 | 0.708 | 0.531 | 18.1 | 1.1 | 0.708 |
Additionally you can ask for third party inspection and obtain quality certificates for the Bulwagga
anchors you buy.
